A 20x25x1 air filter is a common 1-inch HVAC filter size used in residential furnaces, central air-conditioning systems and other forced-air HVAC equipment.
The important thing to know before ordering is that 20x25x1 is a nominal size, not necessarily the filter’s exact physical dimensions. For example, Filterbuy lists its 20x25x1 filter at 19.5 × 24.5 × 0.75 inches, while 3M/Filtrete publishes 20×25 versions around 19.69 × 24.69 × 0.81 inches.
If you’re comparing other HVAC filter sizes, see our main Air Filters guide for help with dimensions, MERV ratings, replacement schedules and choosing the right filter.

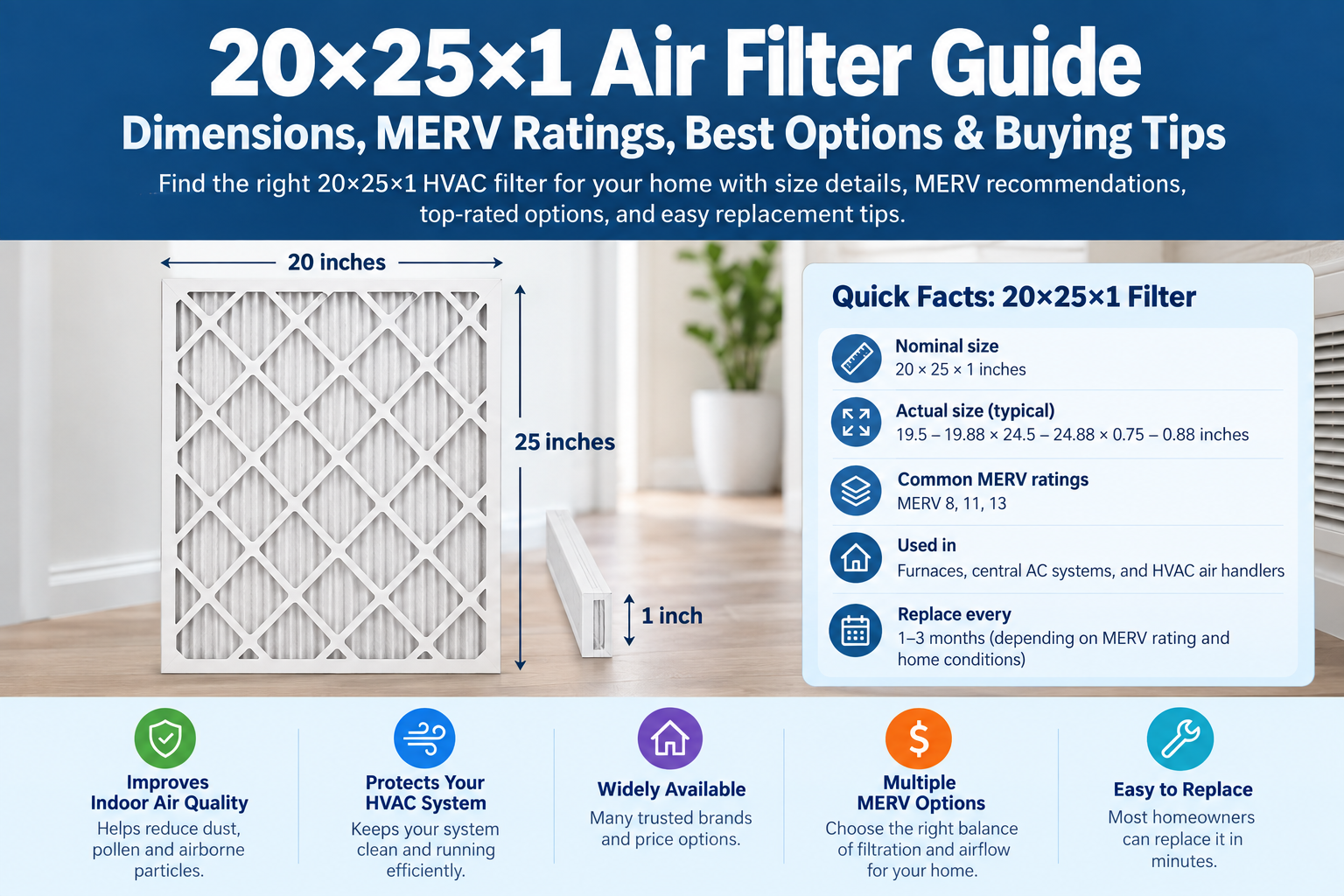

20x25x1 Air Filter at a Glance
| Specification | 20x25x1 |
|---|---|
| Nominal size | 20 × 25 × 1 inches |
| Filter type | Usually pleated |
| Typical actual size | Smaller than 20 × 25 × 1 |
| Common actual depth | About 0.75–0.81 inches |
| Common MERV ratings | MERV 8, 11 and 13 |
| Used for | Furnace, central AC and HVAC systems |
| Typical replacement interval | About 1–3 months, depending on filter and conditions |
| Main buying concern | Correct size, MERV rating and system compatibility |
Important: Always check the actual dimensions printed on your existing filter when switching brands.
What Does 20x25x1 Mean?
The three numbers describe the filter’s nominal length, width and thickness:
- 20 inches
- 25 inches
- 1 inch
The numbers make it easy to identify and order a replacement, but they do not guarantee that the filter will measure exactly 20 × 25 × 1 inches.
Actual dimensions are normally smaller so the filter can slide into the filter rack without binding.
For example:
- Filterbuy: 19.5 × 24.5 × 0.75 inches
- Filtrete/3M examples: approximately 19.69 × 24.69 × 0.81 inches
- Amazon Basics example: 19.75 × 24.75 × 0.75 inches
This difference is normal.
The important question is whether the replacement filter fits your particular filter slot correctly.

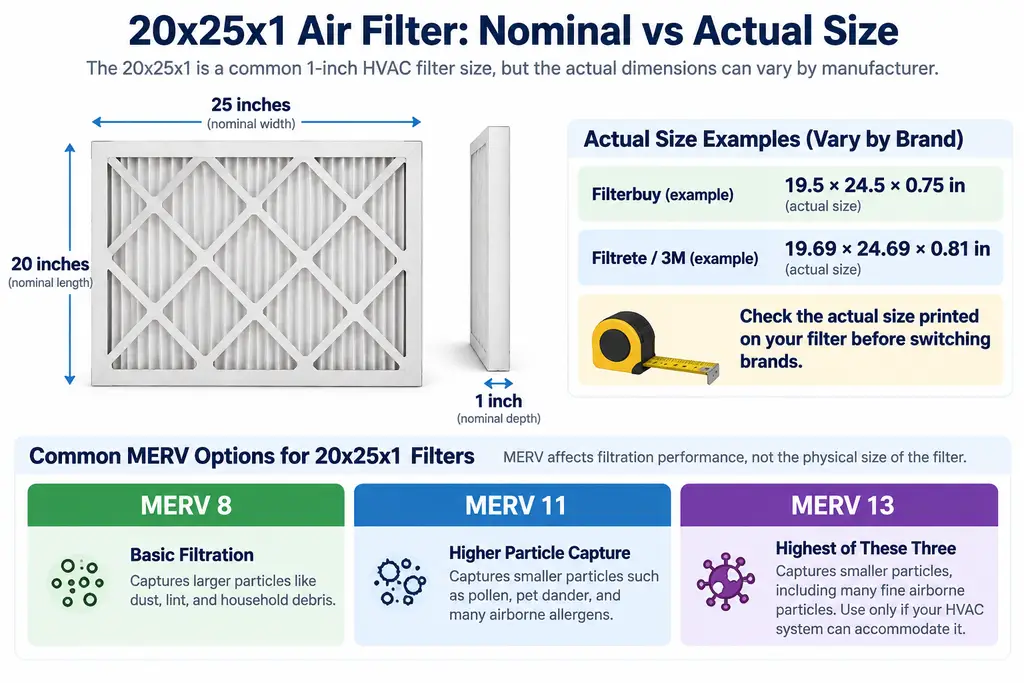

20x25x1 Actual Size: Why It Matters
If your existing filter says 20x25x1, don’t assume every replacement from another manufacturer will have exactly the same physical dimensions.
Different manufacturers can use slightly different clearances.
For example:
| Product example | Nominal size | Published actual size |
|---|---|---|
| Filterbuy 20x25x1 | 20 × 25 × 1 | 19.5 × 24.5 × 0.75 in |
| Filtrete/3M 20x25x1 | 20 × 25 × 1 | About 19.69 × 24.69 × 0.81 in |
| Amazon Basics 20x25x1 | 20 × 25 × 1 | 19.75 × 24.75 × 0.75 in |
These differences are small, but they can matter if your filter rack is unusually tight or if you’re switching from one brand to another.
What to check before ordering
Compare:
- Nominal size
- Actual length
- Actual width
- Actual depth
- HVAC/filter-cabinet model if applicable
- MERV rating
If you still have the old filter, measure it before ordering a different brand.
If you’re trying to understand the same issue with a deeper filter, see our 20x25x4 air filter guide, which explains why actual depth becomes especially important with 4-inch filters.
20x25x1 Filter vs. 20x25x4 Filter
The biggest physical difference is depth.
A 20x25x1 filter is designed for a roughly 1-inch filter slot, while a 20x25x4 filter belongs in a deeper media cabinet or filter housing designed for that thickness.
Do not substitute one for the other simply because the length and width are the same.
If your existing filter is approximately 4 inches thick, use a filter designed for that cabinet rather than buying a 1-inch filter.
Which MERV Rating Should You Choose?
MERV stands for Minimum Efficiency Reporting Value. It is the standard rating used to compare how effectively HVAC filters capture particles across specified particle sizes.
A higher MERV rating generally means greater particle-capture efficiency, but the highest rating isn’t automatically the right choice for every HVAC system. The EPA recommends MERV 13 or the highest rating the system’s fan and filter slot can accommodate. US EPA
For a 20x25x1 filter, MERV 8, 11 and 13 are common options.
MERV 8 vs. MERV 11 vs. MERV 13
| Rating | General use | Choose it when |
|---|---|---|
| MERV 8 | Basic filtration | You want everyday dust/lint/pollen filtration |
| MERV 11 | Higher filtration | You want a stronger middle-ground option |
| MERV 13 | Higher-efficiency filtration | Your system can accommodate it and you want greater particle capture |
Don’t choose MERV based solely on the number. Your HVAC system’s compatibility and airflow requirements matter too.
Best 20x25x1 Air Filters to Buy
These are the products I would feature on the page.
Important editorial note: These are recommendations based on published specifications, availability and market evidence—not hands-on testing by Your Own Consumer. Don’t claim that we personally tested them.
Our recommended comparison
| Our pick | Filter | Best for | MERV | Pack | Approx. actual size |
|---|---|---|---|---|---|
| Best Overall | Filtrete 20x25x1 | Widely available replacement | 11 | 2-pack | 19.688 × 24.688 × 0.84 in |
| Best 6-Pack Option | Filterbuy 20x25x1 | Stocking up / regular replacement | 11 | 6-pack | 19.5 × 24.5 × 0.75 in |
| Best Budget MERV 8 Option | Amazon Basics 20x25x1 | Basic filtration | 8 | 6-pack | 19.75 × 24.75 × 0.75 in |
Affiliate disclosure: As an Amazon Associate, Your Own Consumer earns from qualifying purchases.
20x25x1 Furnace Filter vs. AC Filter
A 20x25x1 filter can be used in a furnace, central air-conditioning system or other compatible forced-air HVAC equipment.
The important point is that “furnace filter” and “AC filter” generally refer to the same type of HVAC filter when the equipment uses the same filter size and slot.
The replacement filter needs to:
- Match the required nominal size
- Fit the filter slot correctly
- Have the correct depth
- Have a MERV rating appropriate for the system
- Be installed in the correct airflow direction
The filter itself doesn’t need to be labeled specifically for heating or cooling if it is designed for the compatible HVAC application.
How Often Should You Replace a 20x25x1 Air Filter?
There isn’t one universal replacement interval.
A common starting point for a 1-inch pleated filter is about every 1–3 months, but the correct interval depends on the filter, HVAC runtime and conditions in the home.
You may need to replace it sooner if:
- You have pets
- The home is dusty
- The HVAC runs frequently
- There is construction nearby
- Outdoor air quality is poor
- The filter becomes visibly loaded with dust
Rather than relying only on the calendar, check the filter periodically.
A dirty or heavily loaded filter should not be left in place simply because its nominal replacement date hasn’t arrived.

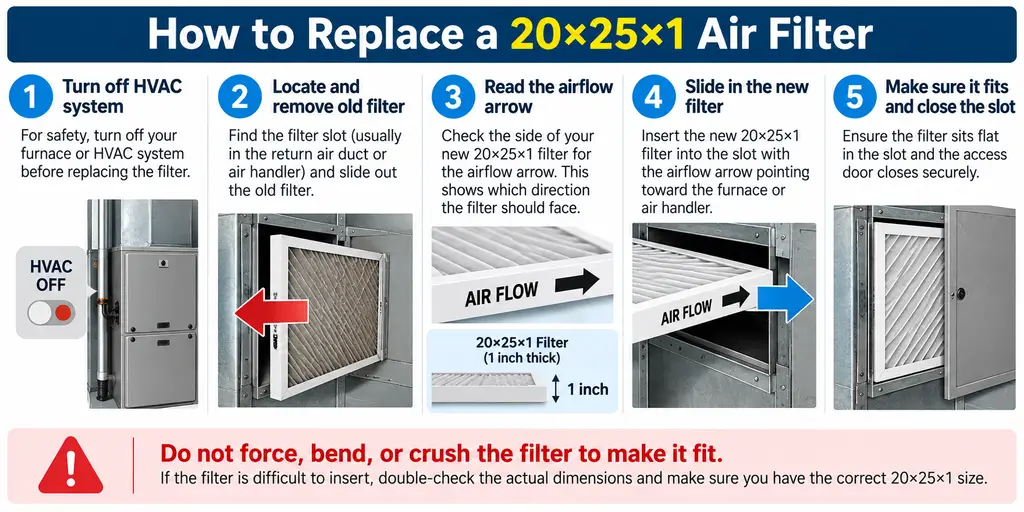

How to Install a 20x25x1 Air Filter
Replacing a 20x25x1 filter is usually straightforward.
Step 1: Turn off the HVAC system
Turn off the furnace, air handler or HVAC system before removing the filter.
Step 2: Locate the existing filter
The filter may be behind a return-air grille, inside a filter cabinet or near the air handler.
Step 3: Remove the old filter
Slide the old filter out carefully.
Before removing it, look for the airflow arrow.
Step 4: Check the new filter
Confirm:
- 20x25x1 nominal size
- Correct MERV rating
- Correct actual dimensions
- Correct airflow direction
Step 5: Install the new filter
Insert the filter with the airflow arrow pointing toward the furnace, air handler or blower.
Step 6: Close the filter access
Make sure the filter sits flat and the access door or grille closes securely.
Never force, bend or crush a filter to make it fit. EPA guidance specifically says filters should fit snugly without air leakage and should not need to be bent or crushed to fit. US EPA
20x25x1 Air Filter Buying Checklist
Before clicking Buy, check these six things:
1. Size
Make sure the existing filter or HVAC documentation calls for 20x25x1.
2. Actual dimensions
If changing brands, compare the actual dimensions.
3. MERV rating
Choose MERV 8, 11 or 13 based on your filtration needs and HVAC compatibility.
4. Pack size
Compare the number of filters in the package rather than looking only at the total price.
5. Replacement schedule
A cheaper filter isn’t necessarily cheaper over the year if it needs to be replaced more frequently.
6. Compatibility
If your system has a manufacturer-specific filter cabinet or unusual dimensions, verify the exact model before ordering.
20x25x1 Air Filter FAQs
There is no single actual size shared by every manufacturer. Examples include 19.5 × 24.5 × 0.75 inches for Filterbuy and approximately 19.69 × 24.69 × 0.81 inches for some Filtrete/3M products.
Yes. They represent the same nominal filter dimensions: 20 inches × 25 inches × 1 inch.
MERV 8, 11 and 13 are common options. EPA recommends MERV 13 or the highest rating your HVAC system can accommodate.
MERV 13 generally provides greater particle-capture efficiency than MERV 8, but that doesn’t mean it is appropriate for every HVAC system. Check system compatibility before upgrading. US EPA
If your furnace and central AC system use the same compatible filter slot, the same 20x25x1 HVAC filter can serve both heating and cooling operation.
A common starting point is every 1–3 months, but actual replacement frequency depends on HVAC runtime, household conditions and the filter itself.
The printed size is nominal. Manufacturers generally make standard filters slightly smaller so they can slide into the filter rack without binding.
No. The depth is different. A 4-inch filter requires a filter cabinet or housing designed for that depth.
Yes, particularly when switching brands or when the existing filter doesn’t fit correctly. Compare the nominal and actual dimensions.
For a broadly available MERV 11 option, our comparison starts with Filtrete. Filterbuy is a strong choice for buying multiple MERV 11 replacements, while Amazon Basics offers a MERV 8 6-pack for basic filtration.
Bottom Line
A 20x25x1 air filter is a common residential HVAC size, but the nominal dimensions don’t tell you everything you need to know.
Before ordering, verify the 20x25x1 nominal size, actual dimensions, MERV rating and HVAC compatibility.
For many shoppers, MERV 11 is a practical middle-ground choice. MERV 13 can provide higher filtration when the HVAC system can accommodate it, while MERV 8 remains a straightforward option for basic filtration.
If you’re comparing the smaller common size, see our 20x20x1 air filter guide for its sizing, MERV ratings and recommended options.
