A 20x20x2 air filter is a nominal HVAC filter size measuring approximately 20 inches by 20 inches with a nominal depth of 2 inches. If your system calls for a 1-inch filter instead, see our 20x20x1 air filter guide.
The important word is nominal. A filter labeled 20x20x2 does not necessarily measure exactly 20 × 20 × 2 inches. For example, Filterbuy currently lists a 20x20x2 filter with an actual size of 19.5 × 19.5 × 1.75 inches. Other brands can have different actual dimensions.
Before buying, check the actual dimensions of your existing air filter and make sure the replacement fits your HVAC filter slot without being bent or crushed.
You also need to choose an appropriate MERV rating. MERV 8, 11 and 13 are common choices for this size, but the highest rating is not automatically the right choice for every HVAC system. EPA recommends MERV 13, or the highest rating the system fan and filter slot can accommodate.
Not sure which filter size you need? Use our air filter sizes guide to compare common dimensions.
20x20x2 Air Filter at a Glance
| Feature | What to Know |
|---|---|
| Nominal size | 20 × 20 × 2 inches |
| Common actual size | 19.5 × 19.5 × 1.75 inches on some products |
| Filter type | Usually pleated |
| Common MERV ratings | MERV 8, 11 and 13 |
| Typical applications | Furnace, central AC, heat pump and HVAC systems |
| Main sizing issue | Actual dimensions vary by manufacturer |
| Main buying issue | Match size, depth and MERV to the HVAC system |
| Replacement | Follow manufacturer guidance and inspect filter condition |
Important: Actual dimensions are product-specific. Don’t assume every 20x20x2 filter measures exactly the same.
What Does 20x20x2 Mean?
The three numbers represent the filter’s nominal width, height and depth:
- 20 inches wide
- 20 inches high
- 2 inches deep
The nominal size makes it easier to identify and shop for replacement filters.
The actual filter is normally somewhat smaller so it can fit into the filter housing.
For example, Filterbuy lists its 20x20x2 filter at 19.5 × 19.5 × 1.75 inches actual size.
If your system calls for a thinner filter, compare this size with our 20x20x1 air filter guide before ordering. The nominal width and height may be the same, but the filter depth is different, so the replacement needs to match your HVAC system.
Why the actual size matters
Two filters can both be labeled 20x20x2 while having slightly different actual dimensions.
That matters when the filter housing has limited clearance or when you’re switching brands.
Before buying a replacement:
- Remove the existing filter.
- Read the size printed on the frame.
- Look for an actual-size measurement.
- Measure the filter if necessary.
- Compare the measurements with the replacement product.
- Make sure the filter fits without forcing it into place.

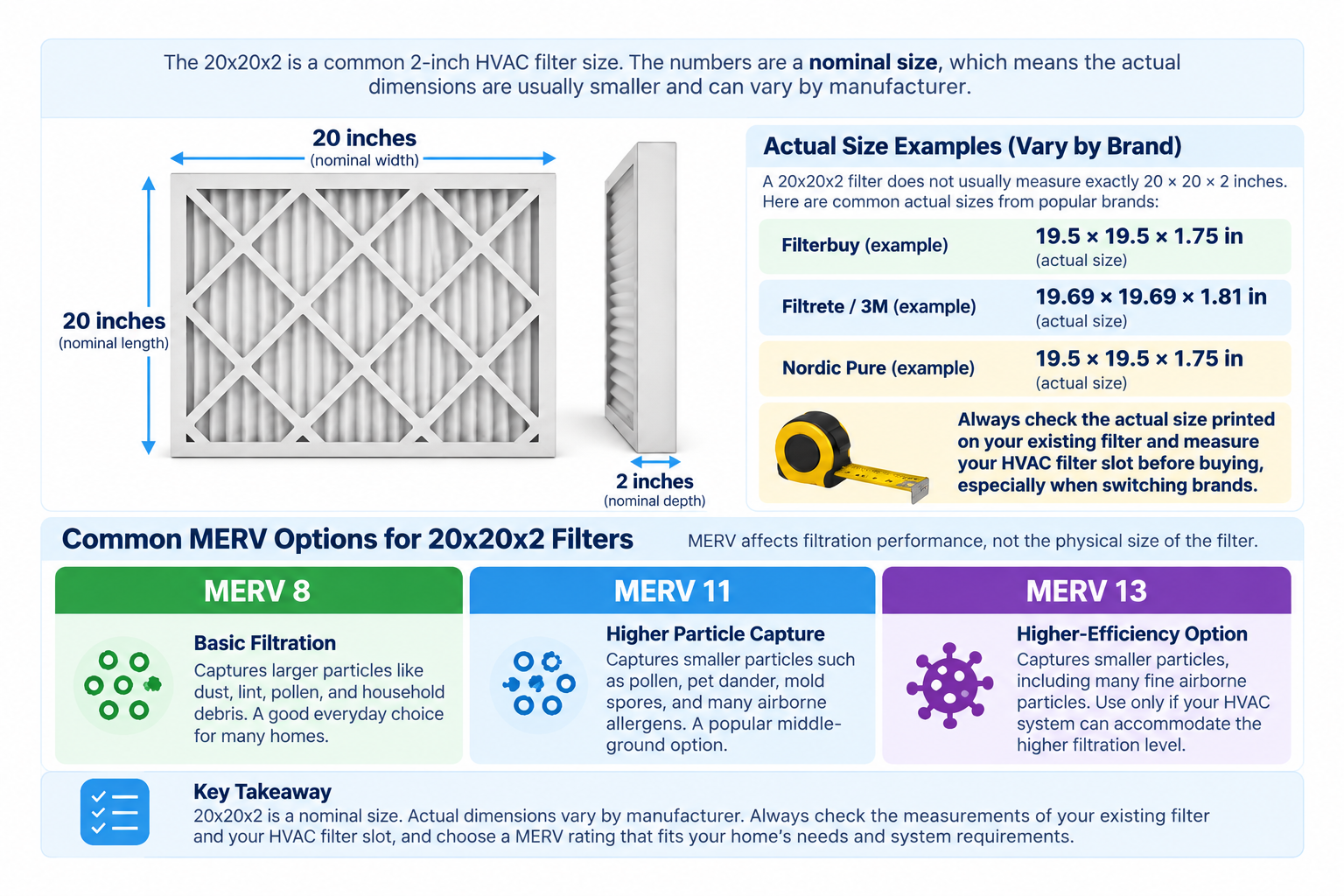

20x20x2 Actual Size
There isn’t one universal actual dimension for every 20x20x2 filter.
A common example is:
19.5 × 19.5 × 1.75 inches
Filterbuy currently lists that actual size for its 20x20x2 filters.
Nordic Pure also sells 20x20x2 filters across multiple MERV ratings and configurations, which is another reason to check the individual product specification rather than assuming all brands have identical dimensions.
What should you do if your old filter doesn’t show the actual size?
Measure it.
Measure:
length × width × depth
Then compare those measurements with the replacement manufacturer’s specifications.
If you’re unsure whether the filter housing can accommodate a particular replacement, check the HVAC manufacturer’s documentation or consult an HVAC professional.
20x20x2 vs. 20x20x1 Air Filters
The main difference is the nominal depth.
| Feature | 20x20x1 | 20x20x2 |
|---|---|---|
| Width | 20″ | 20″ |
| Height | 20″ | 20″ |
| Nominal depth | 1″ | 2″ |
| Typical construction | Pleated | Pleated |
| Filter housing | Designed for 1″ filter | Designed for 2″ filter |
| Interchangeable? | No | No |
A 20x20x1 filter is not automatically interchangeable with a 20x20x2 filter.
The depth needs to match the filter housing.
Don’t substitute a thinner filter just because the width and height are identical.
If you are comparing filter depths, the 20x20x4 air filter is a deeper option that can provide more media area than a 2-inch filter, but it must match the depth your HVAC system is designed to accept. See our 20x20x4 air filter guide for actual dimensions, MERV options, and buying considerations.
MERV Ratings for 20x20x2 Filters
MERV stands for Minimum Efficiency Reporting Value.
It is a standardized rating used to describe how effectively an air filter captures particles across specified particle-size ranges. EPA’s MERV table shows increasing capture efficiency as the MERV rating rises.
For this size, you’ll commonly encounter MERV 8, MERV 11 and MERV 13.
MERV 8
MERV 8 is a common everyday filtration choice.
It provides basic filtration for particles such as dust and pollen and is widely available in residential HVAC filter sizes.
MERV 11
MERV 11 provides stronger filtration than MERV 8 across several particle-size ranges.
It can be a useful middle option when your system supports it and you want more filtration than a basic MERV 8 filter.
MERV 13
MERV 13 is a higher-efficiency option.
EPA recommends MERV 13—or the highest rating the HVAC system fan and filter slot can accommodate—when upgrading filtration. US EPA
Don’t assume MERV 13 is automatically appropriate for every system. Check the HVAC manufacturer’s requirements.
Which MERV Rating Should You Buy?
| Your situation | Starting point |
|---|---|
| Basic everyday filtration | MERV 8 |
| More filtration than MERV 8 | MERV 11 |
| Higher-efficiency filtration | MERV 13, if system supports it |
| Unsure what your HVAC supports | Check the system documentation first |
The correct filter is the one that provides the filtration you need while remaining compatible with your HVAC system.
A higher MERV number does not make an incorrectly sized filter a better filter.
Best 20x20x2 Air Filters to Consider
For this page, I recommend keeping the product comparison straightforward rather than claiming that one filter is universally “best.”
| Product | MERV | Typical configuration | Best for |
|---|---|---|---|
| Filterbuy 20x20x2 | 8 | 6-pack available | Straightforward everyday filtration |
| Nordic Pure 20x20x2 | 12 | 3- or 12-pack options | Higher filtration without using MERV 13 |
| Filterbuy 20x20x2 | 11 or 13 | Multiple pack options | Shoppers wanting higher MERV choices |
Affiliate disclosure: As an Amazon Associate, Your Own Consumer earns from qualifying purchases.
20x20x2 Furnace Filter vs. AC Filter
A 20x20x2 filter can be used in HVAC systems that provide heating, cooling or both.
The important question isn’t whether someone calls it a furnace filter or an AC filter.
Instead, check:
- nominal size
- actual dimensions
- filter depth
- MERV requirement
- HVAC manufacturer’s specifications
If the same filter housing serves both the furnace and central AC system, the replacement filter can serve both functions.
How Often Should You Replace a 20x20x2 Filter?
There is no single replacement interval that applies to every household.
Filter condition depends on factors such as:
- HVAC runtime
- pets
- household dust
- construction or renovation
- smoke
- number of occupants
- filter efficiency
- manufacturer’s recommendations
Filter manufacturers commonly provide their own replacement guidance. For example, Nordic Pure currently recommends replacing 1- to 2-inch filters every 30–90 days, with more frequent changes in higher-load environments.
If your HVAC system uses a different depth, compare this filter with our 20x20x4 air filter guide before ordering.
Check the filter earlier if:
- It looks visibly dirty.
- Airflow seems weaker.
- Your home has pets.
- You’re dealing with heavy dust.
- The HVAC system is running more than usual.
- The manufacturer recommends a shorter interval.
Don’t rely on a calendar alone. Inspect the filter and follow the manufacturer’s guidance.
How to Choose a 20x20x2 Air Filter
Before ordering, check these seven things.
1. Confirm the nominal size
Make sure the existing filter or HVAC documentation calls for 20x20x2.
2. Check actual dimensions
Don’t assume every manufacturer uses identical actual dimensions.
3. Confirm the depth
A 2-inch filter needs a housing designed for the appropriate depth.
4. Check the MERV rating
Look at your current filter and HVAC documentation.
5. Consider your filtration needs
MERV 8, 11 and 13 are common choices.
6. Check airflow direction
The arrow printed on the filter should point in the direction of airflow.
7. Don’t force the filter
The filter should fit snugly without bending or crushing.
EPA specifically recommends making sure the filter fits snugly so air doesn’t bypass it and says not to bend or crush the filter to make it fit. US EPA

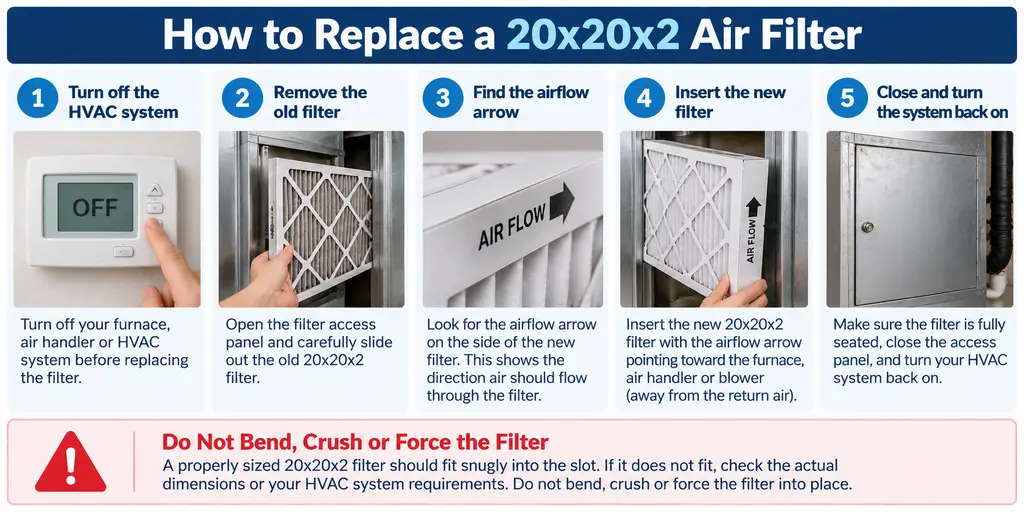

How to Install a 20x20x2 Air Filter
- Turn off the HVAC system.
- Open the filter access panel.
- Remove the old filter.
- Find the airflow arrow on the replacement.
- Insert the new filter with the arrow pointing in the direction of airflow.
- Make sure the filter is fully seated.
- Close the access panel.
- Turn the HVAC system back on.
The filter should fit securely without being bent, crushed or forced.
20x20x2 Air Filter FAQs
It varies by manufacturer. A common example is 19.5 × 19.5 × 1.75 inches, but you should check the actual dimensions of the specific replacement you’re buying.
Not necessarily. Two inches is the nominal depth. The actual depth can be somewhat smaller.
Not simply because the width and height match. The filter depth needs to match the housing.
MERV 11 provides greater capture efficiency than MERV 8 for several particle-size ranges, but the right choice depends on the HVAC system and your filtration needs.
Not necessarily. EPA recommends MERV 13 or the highest rating the system fan and filter slot can accommodate.
Follow the manufacturer’s recommendation and inspect the filter. Many 1- and 2-inch filters are replaced every 30–90 days, but conditions vary.
It can, provided the HVAC system is designed for that size and depth.
Because the printed size is nominal. Manufacturers make filters somewhat smaller so they can fit into the intended housing.
If you’ve confirmed the correct size and MERV rating, buying multiple filters can be convenient and may reduce the per-filter cost. Filterbuy currently offers quantity pricing for this size. FilterBuy
Bottom Line
A 20x20x2 air filter is a common residential HVAC filter size, but the numbers on the label are nominal rather than guaranteed actual dimensions.
Before buying, verify the actual dimensions, confirm that the 2-inch depth matches your filter housing, and select a MERV rating your HVAC system can accommodate.
For many shoppers, MERV 8 is a straightforward everyday option, MERV 11 provides stronger filtration, and MERV 13 is a higher-efficiency option when the system supports it.
