If you need a 20x20x4 air filter, the first thing to know is that 20x20x4 is a nominal filter size, not necessarily the filter’s exact measured dimensions.
A 20x20x4 filter is designed for an HVAC system with a filter slot or cabinet intended for that nominal size. The actual filter can be slightly smaller than 20 × 20 × 4 inches, and the exact dimensions vary by manufacturer and product line.
For example, one common pleated 20x20x4 filter has an actual size of about 19.5 × 19.5 × 3.63 inches. Always check the dimensions of your existing filter and the requirements of your HVAC system before ordering.
The other major decision is MERV rating. MERV 8, MERV 11 and MERV 13 are common choices, but a higher rating isn’t automatically the right choice for every HVAC system.
Quick answer: If your system is designed for a 20x20x4 filter, verify the actual dimensions first, then choose the highest MERV rating your system can accommodate.
20x20x4 Air Filter at a Glance
| Feature | What to know |
|---|---|
| Nominal size | 20 × 20 × 4 inches |
| Filter type | Usually pleated HVAC filter |
| Common MERV ratings | MERV 8, 11 and 13 |
| Typical actual size | Around 19.5 × 19.5 × 3.63 inches for some standard filters |
| Applications | Furnace, central AC, heat pump and HVAC systems |
| Main buying concern | Actual dimensions and system compatibility |
| Replacement interval | Follow the manufacturer’s recommendation and inspect filter condition |
Important: Actual dimensions vary between products, so don’t assume every filter labeled 20x20x4 measures exactly the same.
What Does 20x20x4 Mean?
The three numbers describe the filter’s nominal width, height and depth:
- 20 inches wide
- 20 inches high
- 4 inches deep
The size printed on a filter is normally used as a convenient category for shopping and identifying compatible filter slots.
It does not necessarily mean the filter will measure exactly 20 × 20 × 4 inches.
That’s normal.
Manufacturers make filters somewhat smaller than their nominal dimensions so they can slide into the intended filter housing without being forced into place.
Why actual size matters
If your existing filter is labeled 20x20x4, look at the frame for an actual-size measurement if one is printed.
If there is no actual size listed, measure:
width × height × depth
before ordering a replacement.
This becomes particularly important when changing brands.

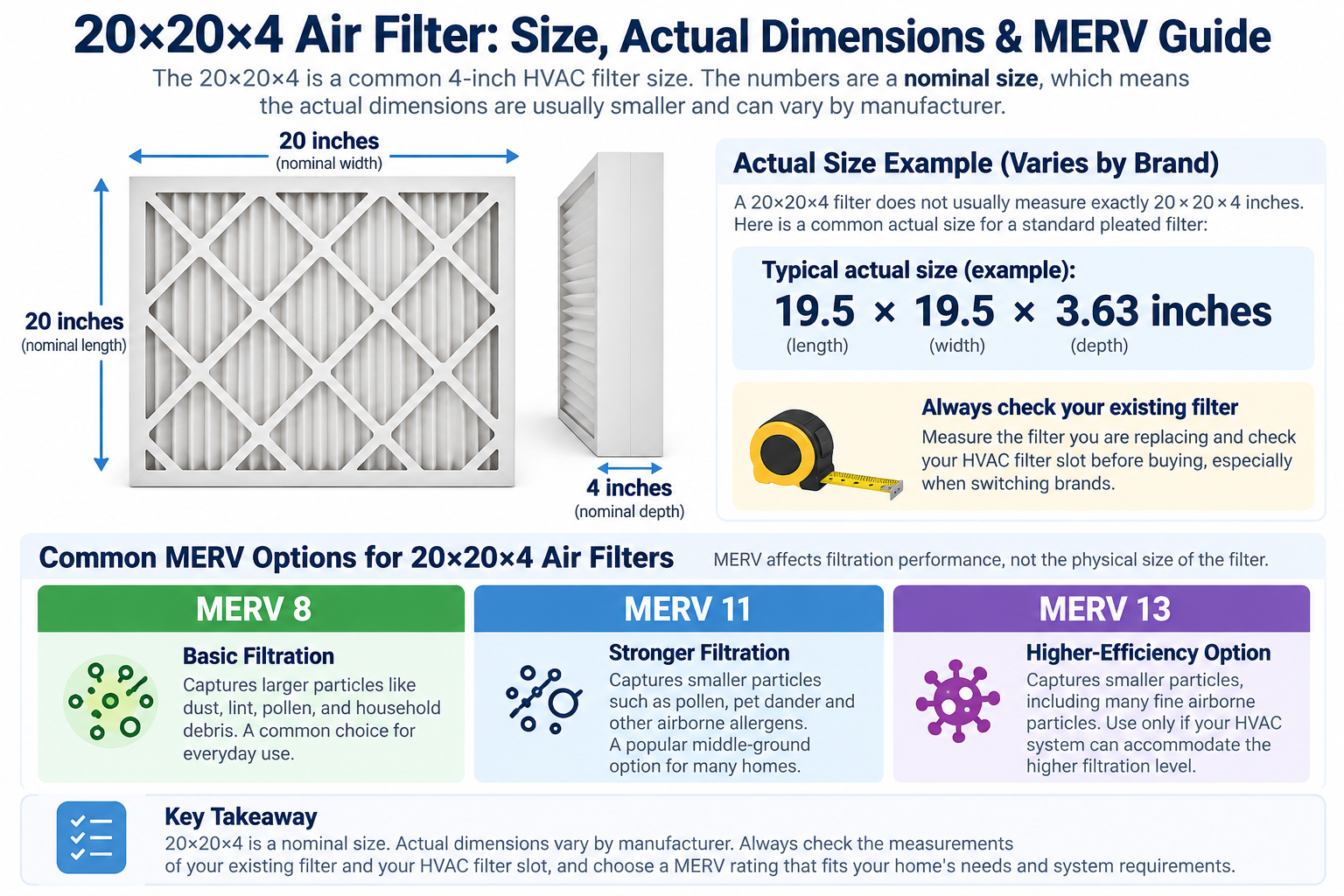

20x20x4 Actual Size: What Should It Measure?
There is no single actual dimension that applies to every 20x20x4 filter.
One common standard pleated example is approximately:
19.5 × 19.5 × 3.63 inches
But other products can differ.
For example, some 20x20x4 products intended for specific media cabinets or systems have different actual dimensions. A Fortify 20x20x4 replacement marketed for Honeywell-compatible applications is listed at approximately 19.63 × 19.88 × 4.38 inches.
That is why you should not buy solely from the three numbers on the front of the box when replacing a deeper filter.
The safest approach
Before buying:
- Remove the existing filter.
- Check its printed model or size.
- Measure the actual width.
- Measure the actual height.
- Measure the actual depth.
- Compare those measurements with the replacement filter’s specifications.
- If your HVAC manufacturer specifies a particular filter or model, follow that specification.
The goal is a filter that fits snugly without being bent, crushed or forced into the slot.
20x20x4 vs. 20x20x1
These filters have the same nominal width and height but very different depths.
| Feature | 20x20x1 | 20x20x4 |
|---|---|---|
| Nominal width | 20″ | 20″ |
| Nominal height | 20″ | 20″ |
| Nominal depth | 1″ | 4″ |
| Filter media depth | Shallower | Deeper |
| Typical application | Standard filter slot | Media cabinet/deeper filter housing |
| Replacement | More frequent in many systems | Often longer replacement interval, depending on product/system |
Do not substitute a 20x20x1 filter for a 20x20x4 filter simply because the width and height match.
The filter depth needs to match the filter housing or system specification.
Which MERV Rating Should You Buy?
| If your priority is… | Consider |
|---|---|
| Basic everyday filtration | MERV 8 |
| Stronger filtration for a typical home | MERV 11 |
| Higher-efficiency particle filtration | MERV 13 |
| You aren’t sure what your HVAC system supports | Check the manufacturer’s specification first |
The best filter isn’t necessarily the one with the highest number.
The better choice is the highest-rated filter your system is designed to accommodate while maintaining proper fit and airflow.
Best 20x20x4 Air Filters to Consider
Here are three useful starting points rather than pretending there is one universally “best” filter.
Important editorial note: These are recommendations based on published specifications, availability and market evidence—not hands-on testing by Your Own Consumer. Don’t claim that we personally tested them.
| Product | MERV | Approx. actual size | Pack | Best for |
|---|---|---|---|---|
| Filterbuy 20x20x4 | 8 | 19.5 × 19.5 × 3.63″ | 2 | Basic filtration |
| Nordic Pure 20x20x4 | 12 | 19.5 × 19.5 × 3.63″ | 2 | Higher filtration without jumping to MERV 13 |
| Fortify 20x20x4 | 11 | 19.63 × 19.88 × 4.38″ | 2 | Honeywell-compatible applications |
Affiliate disclosure: As an Amazon Associate, Your Own Consumer earns from qualifying purchases.
20x20x4 Furnace Filter vs. AC Filter
A 20x20x4 filter may be used in a forced-air system that provides heating, cooling or both.
The important part isn’t whether the searcher calls it a “furnace filter” or an “AC filter.”
The important questions are:
- Is 20x20x4 the correct nominal size?
- Does the actual filter fit the housing?
- Is the 4-inch depth correct?
- What MERV rating does the system support?
- Does the replacement filter match the manufacturer’s requirements?
So a 20x20x4 furnace filter and a 20x20x4 AC filter can refer to the same type of HVAC replacement filter when they’re intended for the same filter housing.
How Often Should You Replace a 20x20x4 Filter?
There isn’t one universal replacement interval.
The correct interval depends on the filter, HVAC system, household conditions and how quickly the filter becomes loaded with particles.
EPA says to follow the manufacturer’s replacement recommendation and notes that manufacturers commonly recommend replacement around 60–90 days, while actual conditions can require more frequent replacement. US EPA
Some 4-inch filter products are designed for substantially longer intervals. For example, 3M lists a 4-inch Filtrete product line with filter-life guidance of up to 12 months depending on the specific product and conditions. 3M
Check the filter sooner if:
- You have pets.
- You have unusually dusty conditions.
- The HVAC system runs frequently.
- The filter looks heavily loaded.
- Your manufacturer recommends a shorter interval.
Don’t use a calendar alone. Follow the filter manufacturer’s guidance and inspect the filter.
How to Choose a 20x20x4 Air Filter
Before ordering, check these seven things:
1. Confirm the nominal size
Make sure your existing filter or HVAC documentation specifies 20x20x4.
2. Check the actual dimensions
Don’t assume every 20x20x4 filter has identical measurements.
3. Confirm the depth
A 4-inch nominal filter is not interchangeable with a 1-inch filter just because the width and height are the same.
4. Check the MERV requirement
Look at your existing filter and HVAC documentation.
5. Consider your filtration needs
MERV 8, 11 and 13 can all be reasonable choices depending on the system.
6. Check the filter orientation
The airflow arrow should point in the direction of airflow through the HVAC system.
7. Don’t force the filter
A properly sized filter should fit without being bent, crushed or forced.

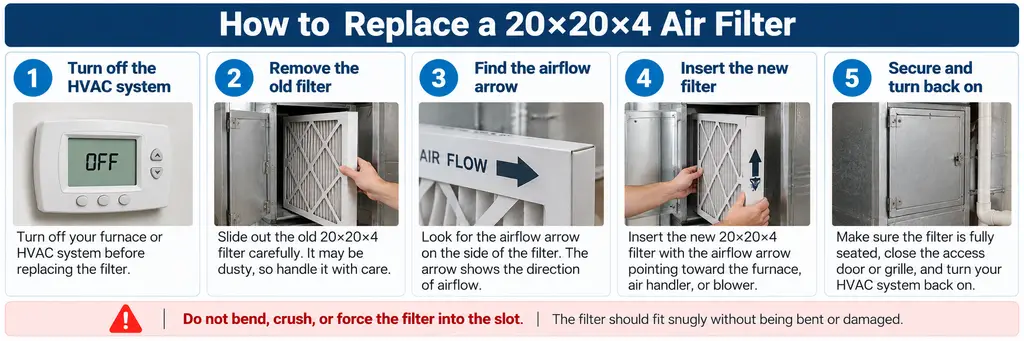

How to Install a 20x20x4 Air Filter
- Turn off the HVAC system.
- Open the filter access panel.
- Remove the old filter carefully.
- Find the airflow arrow on the new filter.
- Insert the filter with the arrow pointing in the direction of airflow.
- Make sure the filter is fully seated.
- Close the access panel.
- Turn the HVAC system back on.
The filter should sit securely without being bent or crushed. EPA specifically advises ensuring the filter fits snugly without forcing or damaging it.
20x20x4 Air Filter FAQs
There is no single actual size for every product. A common standard pleated example is approximately 19.5 × 19.5 × 3.63 inches, but actual dimensions vary by manufacturer and product line.
Not necessarily. “4 inches” is the nominal depth. The actual depth can be smaller or, in some products, different from exactly 4 inches.
No—not simply because the width and height match. The filter depth needs to correspond to the filter housing and HVAC system.
MERV 11 provides higher particle-capture efficiency than MERV 8 for the particle ranges covered by the MERV standard. But the correct choice depends on what your HVAC system can accommodate.
Not necessarily. EPA recommends MERV 13 or the highest rating the system fan and filter slot can accommodate. Check your HVAC manufacturer’s requirements if you’re unsure. US EPA
Follow the manufacturer’s recommendation and inspect the filter. Many manufacturers recommend intervals around 60–90 days, but some deeper filters have longer specified service intervals.
It can, provided the HVAC system is designed for that filter size and depth. The important consideration is the filter housing and system specification, not whether you call it a furnace or AC filter.
Because 20x20x4 is a nominal size. Manufacturers commonly make filters somewhat smaller so they can fit into the intended filter housing.
Bottom Line
If you need a 20x20x4 air filter, don’t choose solely from the size printed on the package.
First confirm the nominal size, then check the actual dimensions and depth of the replacement. After that, choose the MERV rating that fits your HVAC system and filtration needs.
For many shoppers, MERV 8 is a straightforward everyday option, MERV 11 offers stronger filtration, and MERV 13 is a higher-efficiency choice when the HVAC system can accommodate it.
